TC12 AM

Name: TC12 AM
Brand: Spapperi
SKU: TC12 AM

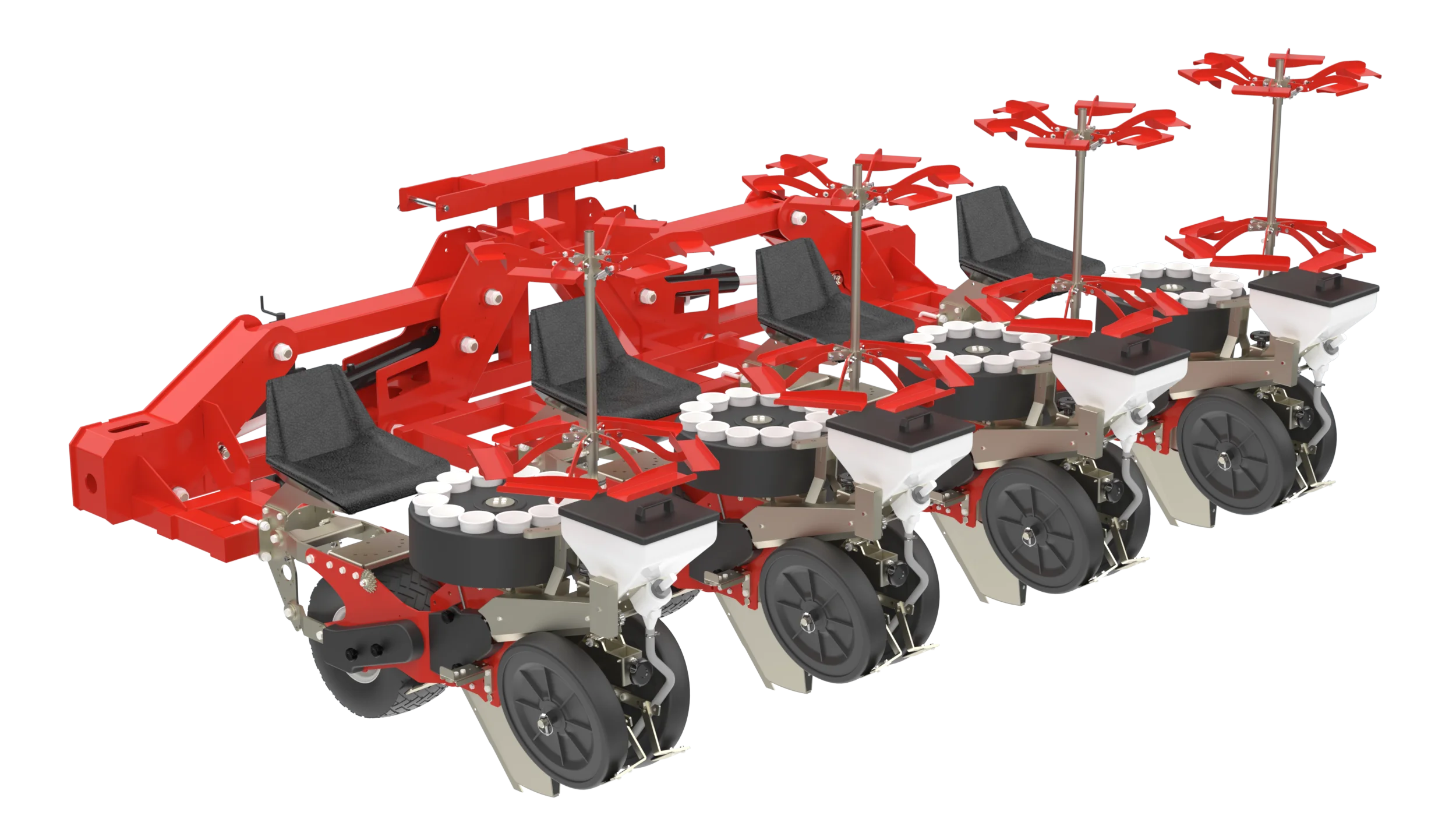

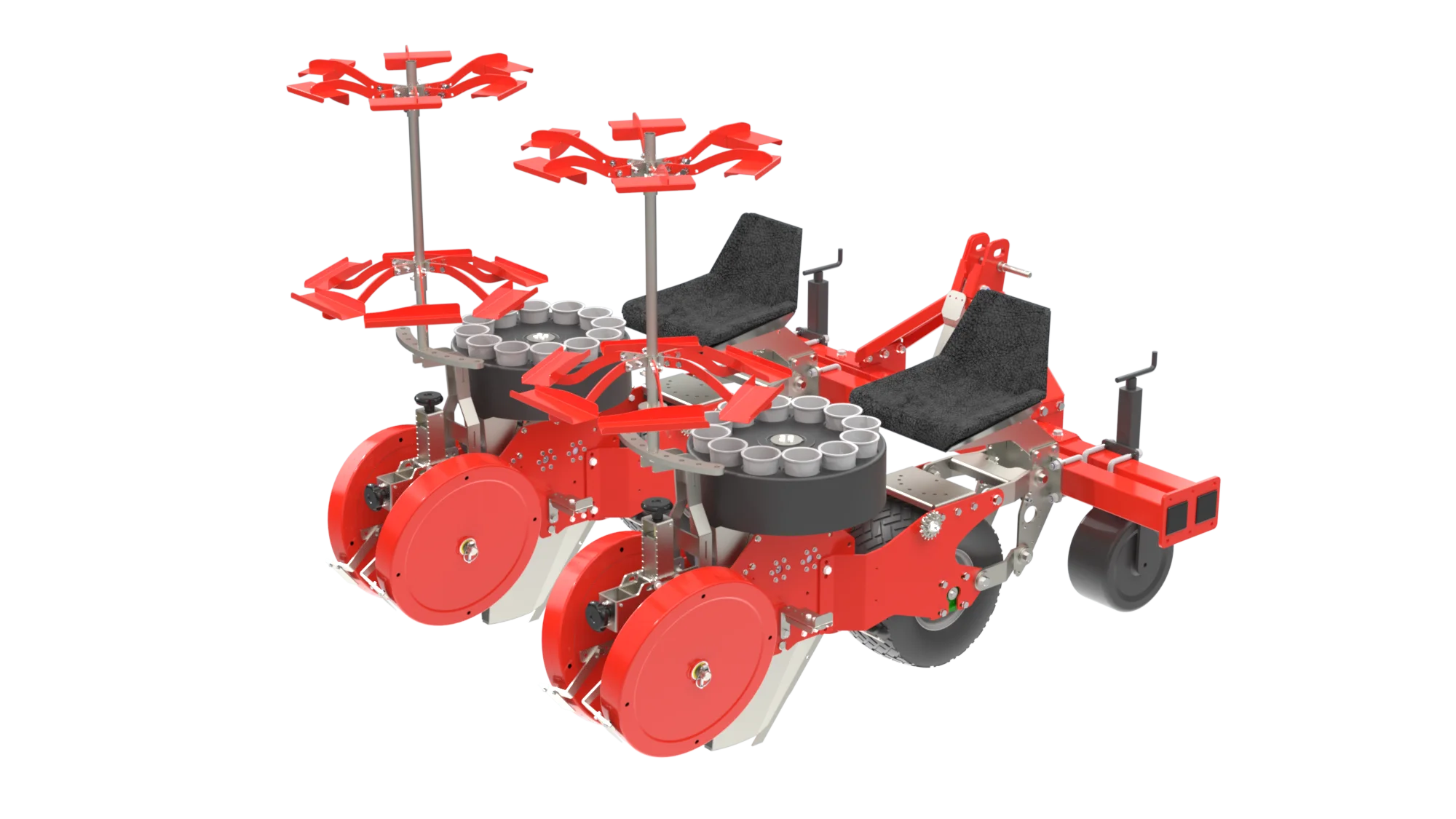

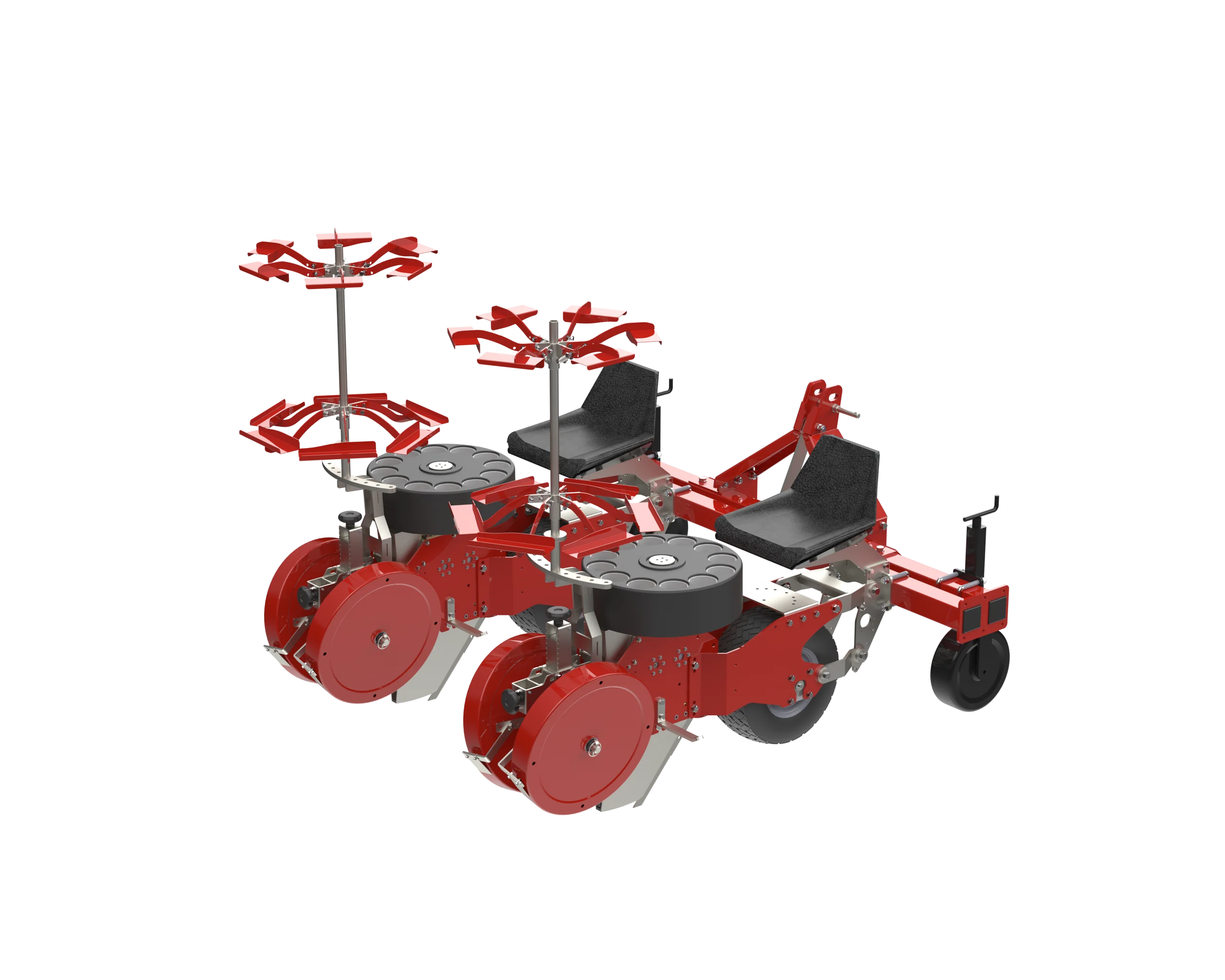

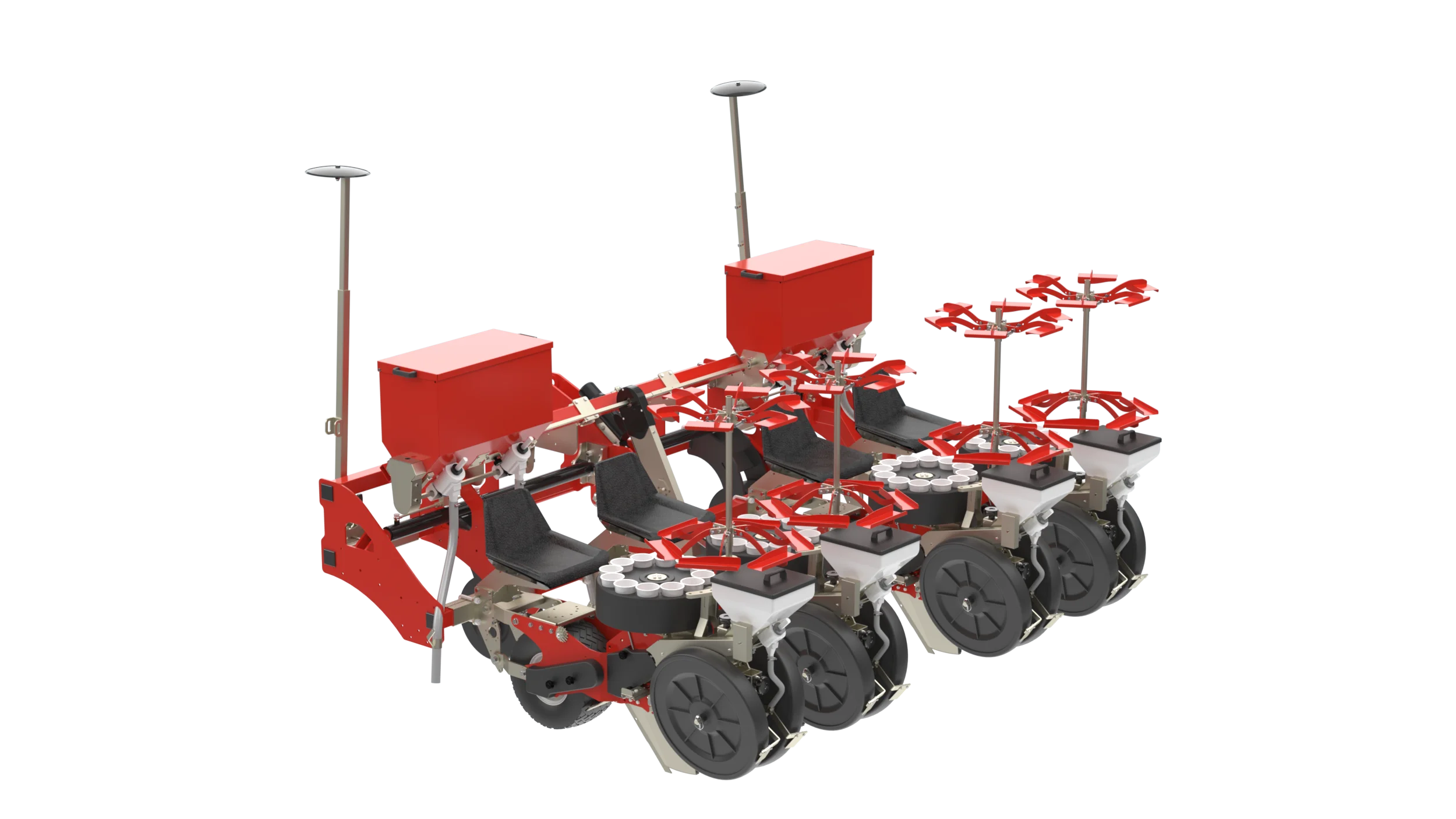

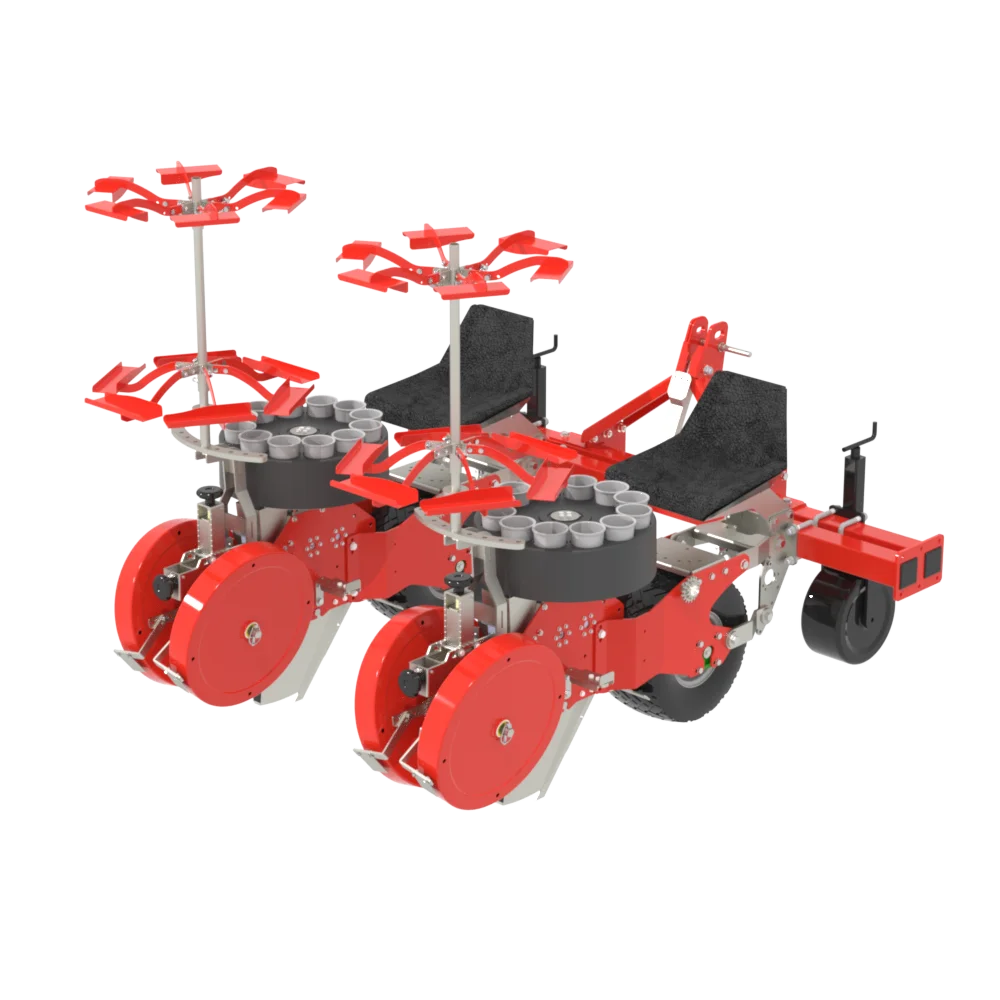

Mechanical transplanter with a 12-cup rotary distributor, designed for seedlings in cell trays with cylindrical, conical, or pyramidal root balls. AVANT: Front operator seat with an integrated support on the frame. MONODRIVE: Single-wheel mechanical transmission for each unit. Modular and scalable design: from 1 to 6 transplanting units (more units available upon request). Configurable for single or twin-row transplanting. Customizable with various accessories and frames.

Technical Features

Drag to rotate

Transplanting specifications

Shape and Dimensions

	cm	in
A	1.5 ÷ 6	0.6 ÷ 2.3
B	3 ÷ 7	1.2 ÷ 2.7
C	10 ÷ 20	4 ÷ 7.9
D	13 ÷ 2	5.2 ÷ 10.6

Conical Plate

Pyramidal Plate

Cylindrical Plate

Technical Specifications

Number of rows

1 - 6

Planting layout

Single rows / twin rows

Quincunx

Transmission

Mechanical – MONODRIVE drive wheel per unit

Operator chair

AVANT: Operator seat on frame, facing away from tractor

Indicative production

3.500 – 5.000 plants/h per row

Standard Equipment

Frame

and number of elements according to the setup

Mono Drive transmission

with single integrated drive wheel in the transplanting element

Transplanting element

equipped with parallelogram, furrow opener mod. S for seedlings sized 2.1 - 3.0 cm (0.8 - 1.1 in), transplanting depth adjustment, padded seat with backrest.

Gear kit

for changing the inter-plant distance
