TC12 AT

Name: TC12 AT
Brand: Spapperi
SKU: TC12 AT

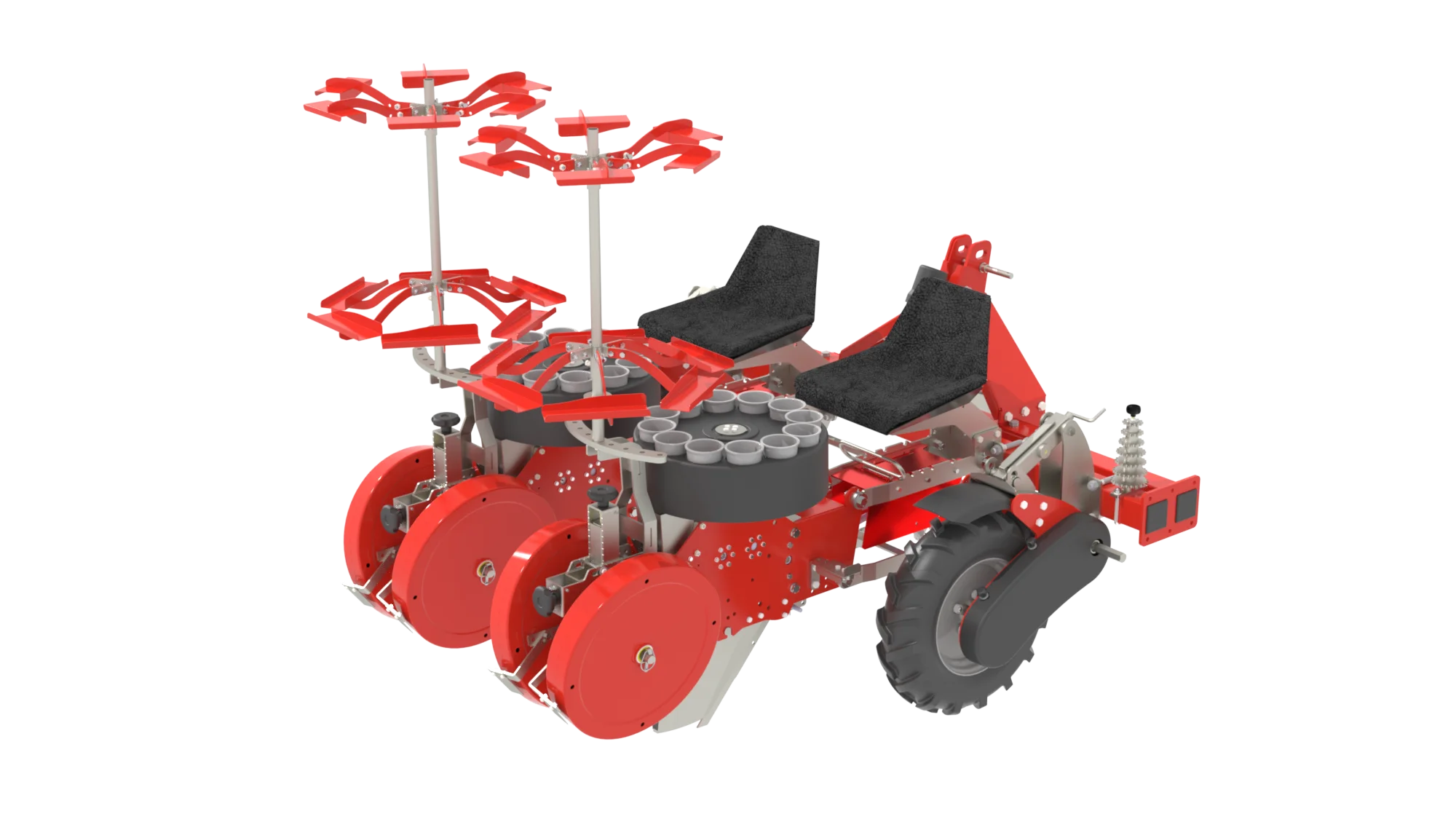

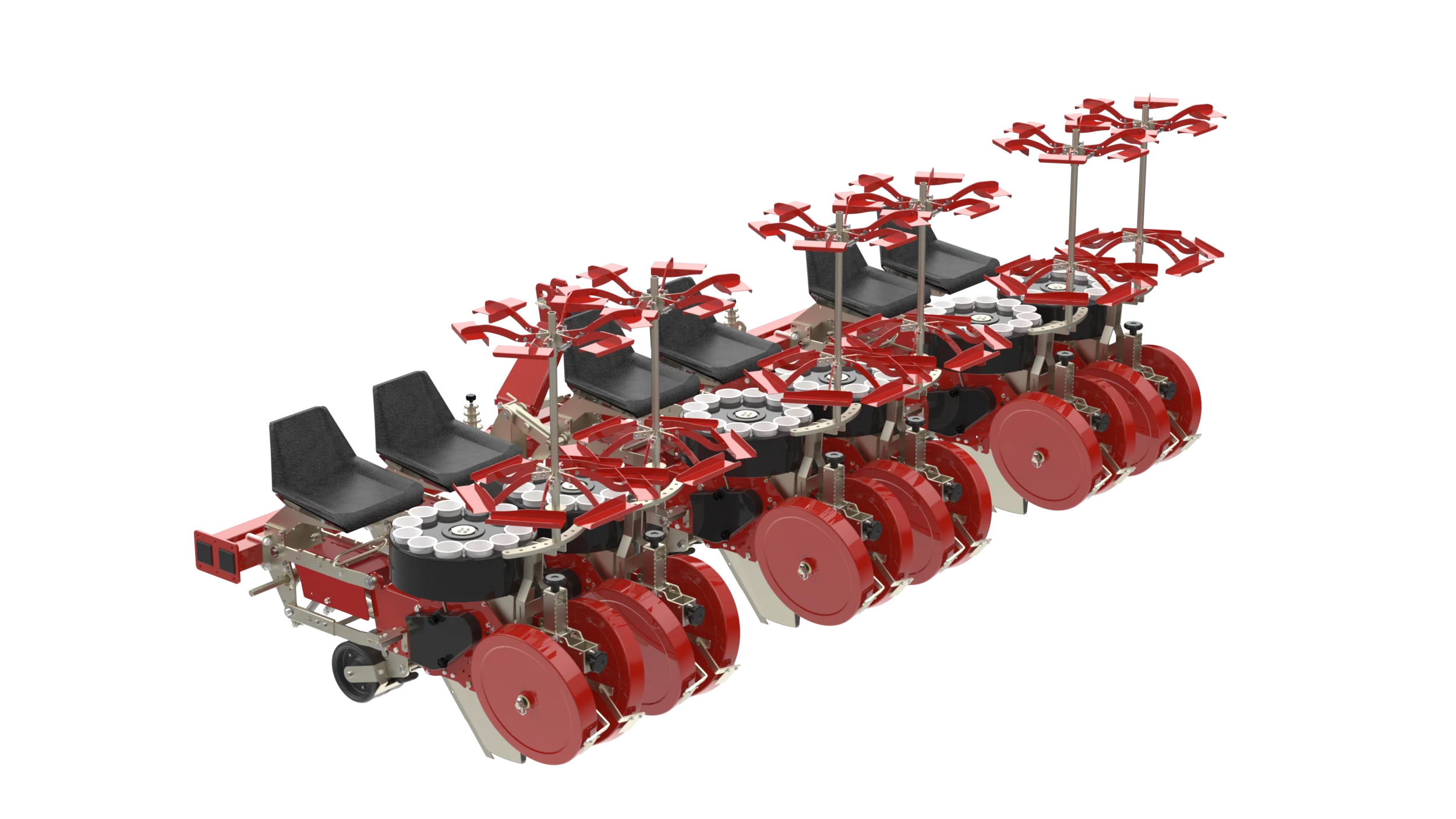

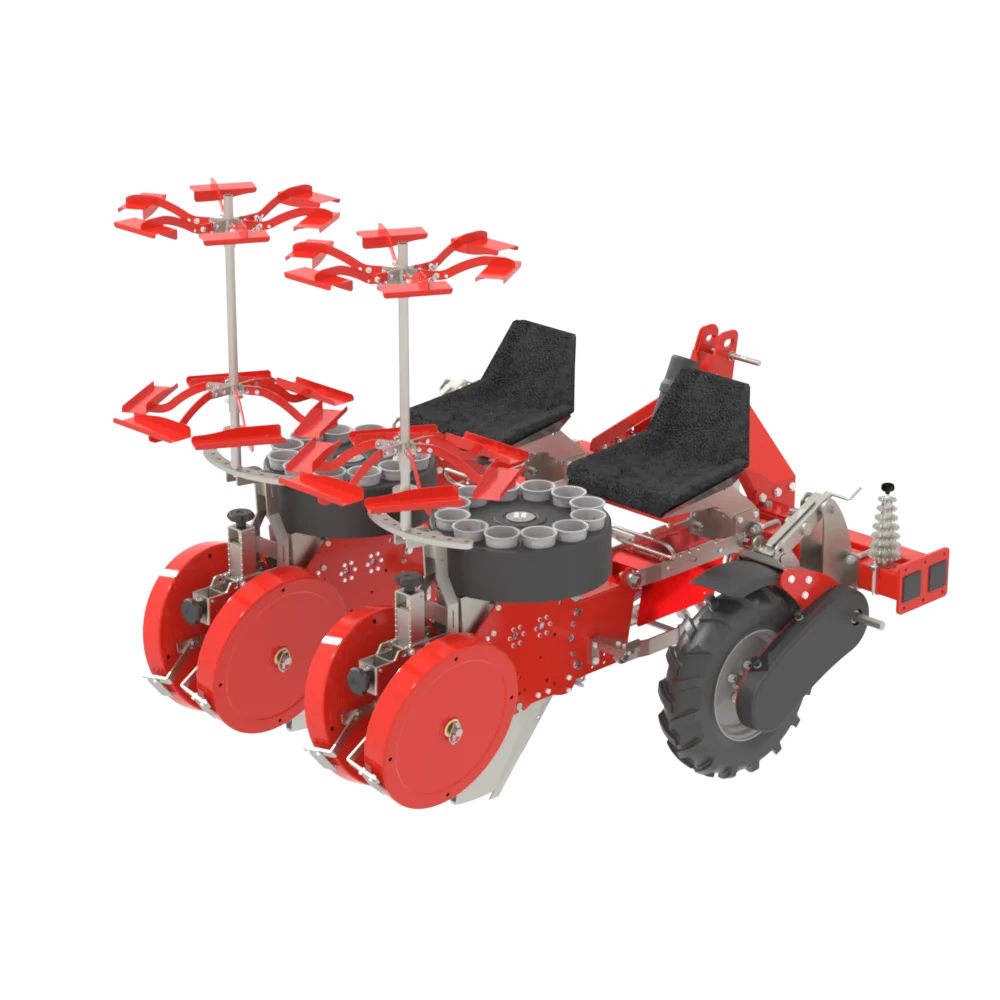

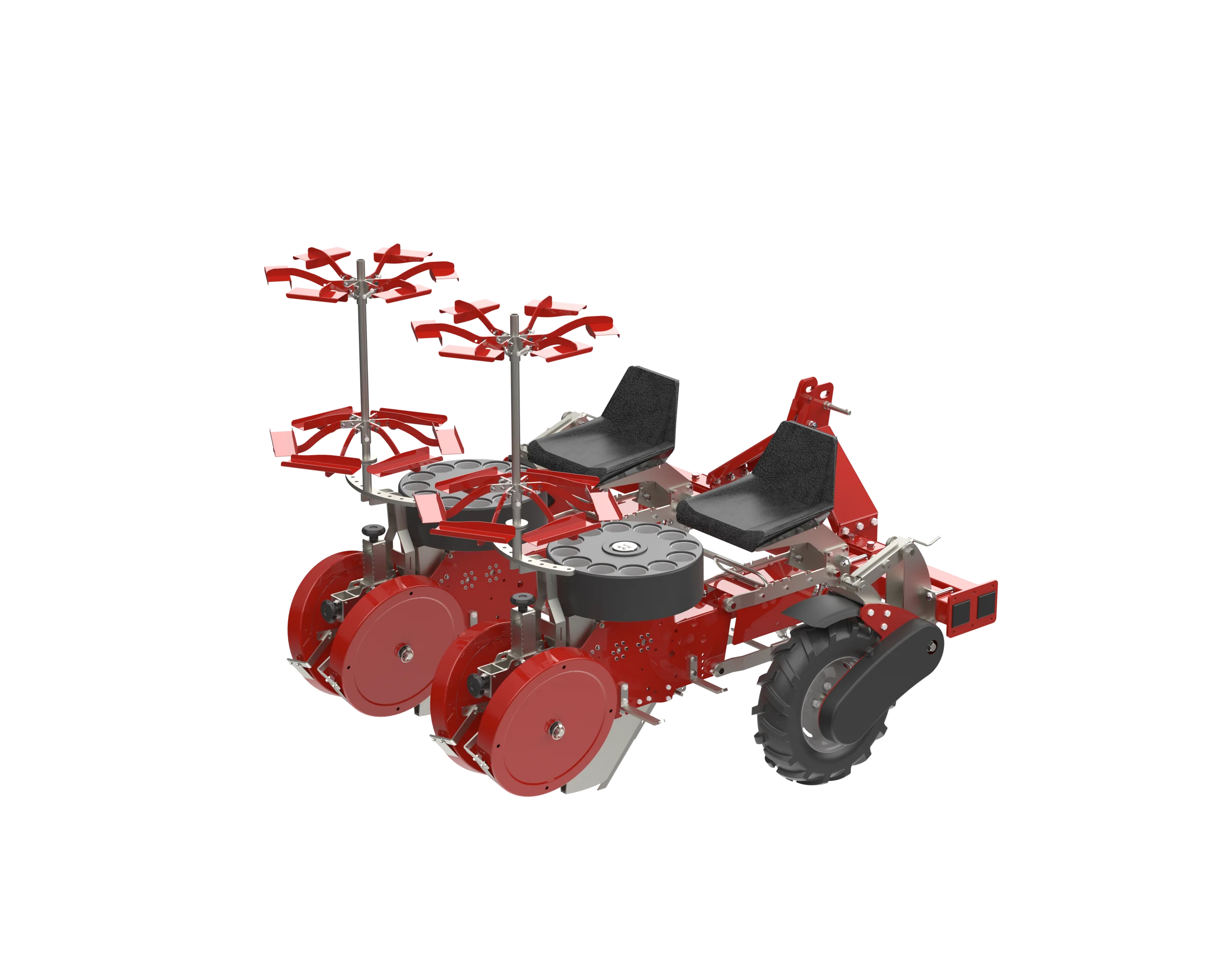

Mechanical transplanter with a 12-cup rotary distributor, designed for seedlings in cell trays with cylindrical, conical, or pyramidal root balls. AVANT: Front operator seat with an integrated support on the frame. TWINDRIVE: Mechanical transmission with side wheels and a hexagonal bar. Modular and scalable design: from 1 to 6 transplanting units (more units available upon request). Configurable for single or twin-row transplanting. Customizable with various accessories and frames.

Technical Features

Drag to rotate

Transplanting specifications

Shape and Dimensions

	cm	in
A	1.5 ÷ 6	0.6 ÷ 2.3
B	3 ÷ 7	1.2 ÷ 2.7
C	10 ÷ 20	4 ÷ 7.9
D	13 ÷ 2	5.2 ÷ 10.6

Conical Plate

Pyramidal Plate

Cylindrical Plate

Technical Specifications

Number of rows

1 - 6

Planting layout

Single rows / twin rows

Quincunx

Yes

Transmission

Mechanical – TWINDRIVE synchronized between units

Operator chair

AVANT: Operator seat on frame, facing away from tractor

Indicative production

3.500 – 5.000 plants/h per row

Standard Equipment

Frame

Number of elements according to the setup.

Transmission

Twin Drive with a common hexagonal bar between the elements for synchronized movements across the transplanting units.

Transplanting element

Equipped with parallelogram, furrow opener mod. S for seedlings sized 2.1 - 3.0 cm (0.8 - 1.1 in), transplanting depth adjustment, padded seat with backrest.

Gear kit

For changing the inter-plant distance.
